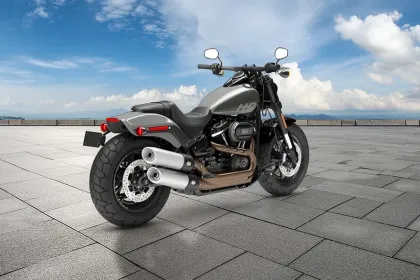

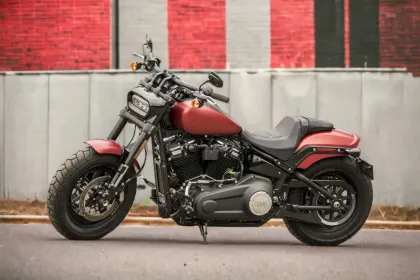

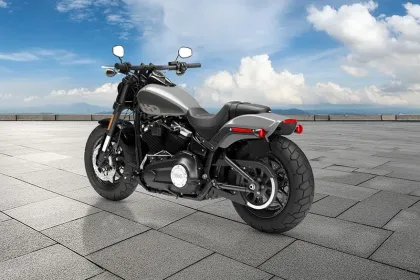

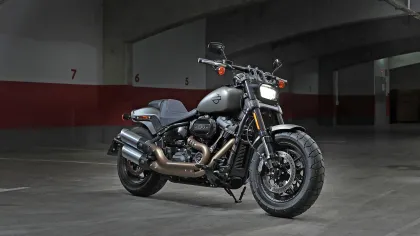

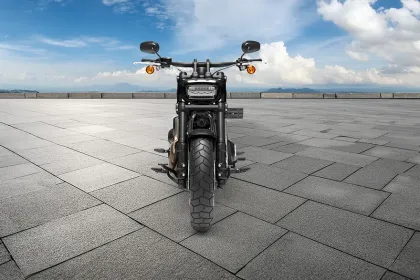

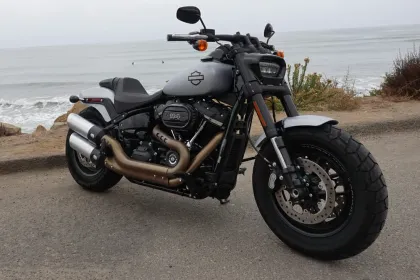

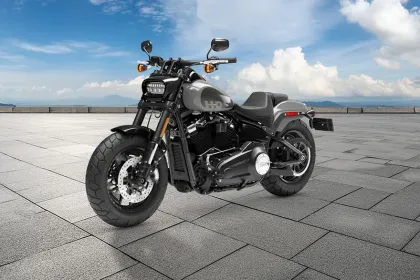

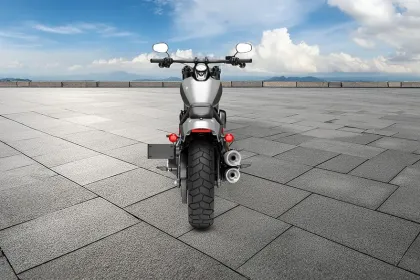

Harley-Davidson Fat Bob 114
$23,604.71 • By Harley-Davidson
Harley-Davidson Fat Bob 114 price in United States starts from $23,604.71.
- Share
$23,604.71
Ex-Showroom PriceFeatures
- 2 Seater Cruiser Bike
- Petrol, 1868 cc Engine
- 4 inch Digital Instrument Cluster
- Cruise Control
- Alloy Wheels
- Anti Lock Braking System (ABS)
- LED Headlamps, Tail Lights, Brake Lights
- Double Disc Brakes
Harley-Davidson Fat Bob 114 Specs
Group: $2,000,000 to $2,500,000
- 2 Seater Cruiser Bike
- Petrol, 1868 cc Engine
- 4 inch Digital Instrument Cluster
- Cruise Control
- Alloy Wheels
- Anti Lock Braking System (ABS)
- LED Headlamps, Tail Lights, Brake Lights
- Double Disc Brakes
General
| Model | Fat Bob 114 |
| Type | Cruiser |
| Colors | Billiard Grey, Vivid Black |
| Warranty Details | 2 years, Unlimited Kms |
Engine and Transmission Details
| Engine Type | Milwaukee-Eight 114 |
| Engine Displacement | 1868 cc |
| Cylinders | 2 |
| Valves/Cylinder | 4 |
| Maximum Power | 91.73 bhp @ 5020rpm |
| Maximum Torque | 155 Nm @ 3500rpm |
| Transmission Type | Manual |
| Fuel Supply System | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start Type | Self |
| Cooling System | Air Cooled |
| Bore | 102 mm |
| Stroke | 114.3 mm |
| Compression Ratio | 10.5:1 |
| Gear Box | 6 Speed Manual Gear Box |
| Drive Type | Chain Drive |
| Exhaust System | 2-into-2 Shorty Dual; Catalyst In Muffler |
Performance Details
| Fuel Tank Capacity | 13.2 L |
| Fuel Type | Petrol |
| ARAI Certified Mileage | 5.5 L/100 km |
| Emission Norm Compliance | Bharat Stage VI Phase 2 (BS VI 2.0) |
Suspension and Braking Details
| Front Suspension | Single Cartridge 43mm Inverted with Aluminum Fork Triple Clamps; Triple Rate Spring |
| Rear Suspension | Hidden, Free Piston, Coil-over Monoshock; 56mm Stroke; Toolless Hydraulic Preload Adjustment |
| Brake Type | Double Disc (Front), Disc (Rear) |
| Brake Size | 300 mm (Front), 292 mm (Rear) |
| Rake Angle | 28 ° |
| Trail | 132 mm |
| Caliper Front | 4-piston Fixed Front and 2-piston Floating Rear |
| Caliper Rear | Front and Rear Black, Split 7-spoke Floating Rotors |
Body Design Details
| Kerb Weight | 296 kg |
| Length | 2340 mm |
| Ground Clearance | 120 mm |
| Wheel Base | 1615 mm |
| Seating Capacity | 2 Seater |
| Seat Height | 710 mm |
| Wheel Design | Alloy Wheel |
| Tyre Type | Dunlop Harley-Davidson Series, bias blackwall front and rear |
| Tyre Size Front | 150/80-16,71H,BW |
| Tyre Size Rear | 180/70B16,77H,BW |
Comfort and Convenience Details
| Cruise Control | Yes |
| Side Stand | Yes |
| Passenger Footrest | Yes |
Safety Features
| Anti Lock Braking System (ABS) | Yes, Dual Channel |
| Side Stand Indicator | Yes |
| Kill Switch | Yes |
Lights and Indicators
| Headlamps | LED Headlamps |
| Daytime Running Lights (DRLs) | Yes, LED DRLs |
| Tail Lights | LED |
| Brake Lights | LED |
| Gear Position Indicator | Yes |
| Tachometer | Digital |
| Speedometer | Digital |
| Fuel Meter | Digital |
| Odometer | Digital |
| Tripmeter | Yes |
| Turn Indicator Type | LED |
| Fuel Consumption Indicator | Yes |
| Pass Light | Yes |
| Clock | Yes |
| Distance To Empty Indicator | Yes |
Instrument Cluster Details
| Instrument Cluster | 4 inches, Digital |
Connected Technology
| Connected Tech | No |
| Low Battery Alert | Yes |
